Off Road Series
Designed for rugged off-road terrains like mountains and bogs, the Off-Road Series is a versatile, high-clearance single-axle trailer perfect for anywhere a Quad / ATV needs to go.
Features

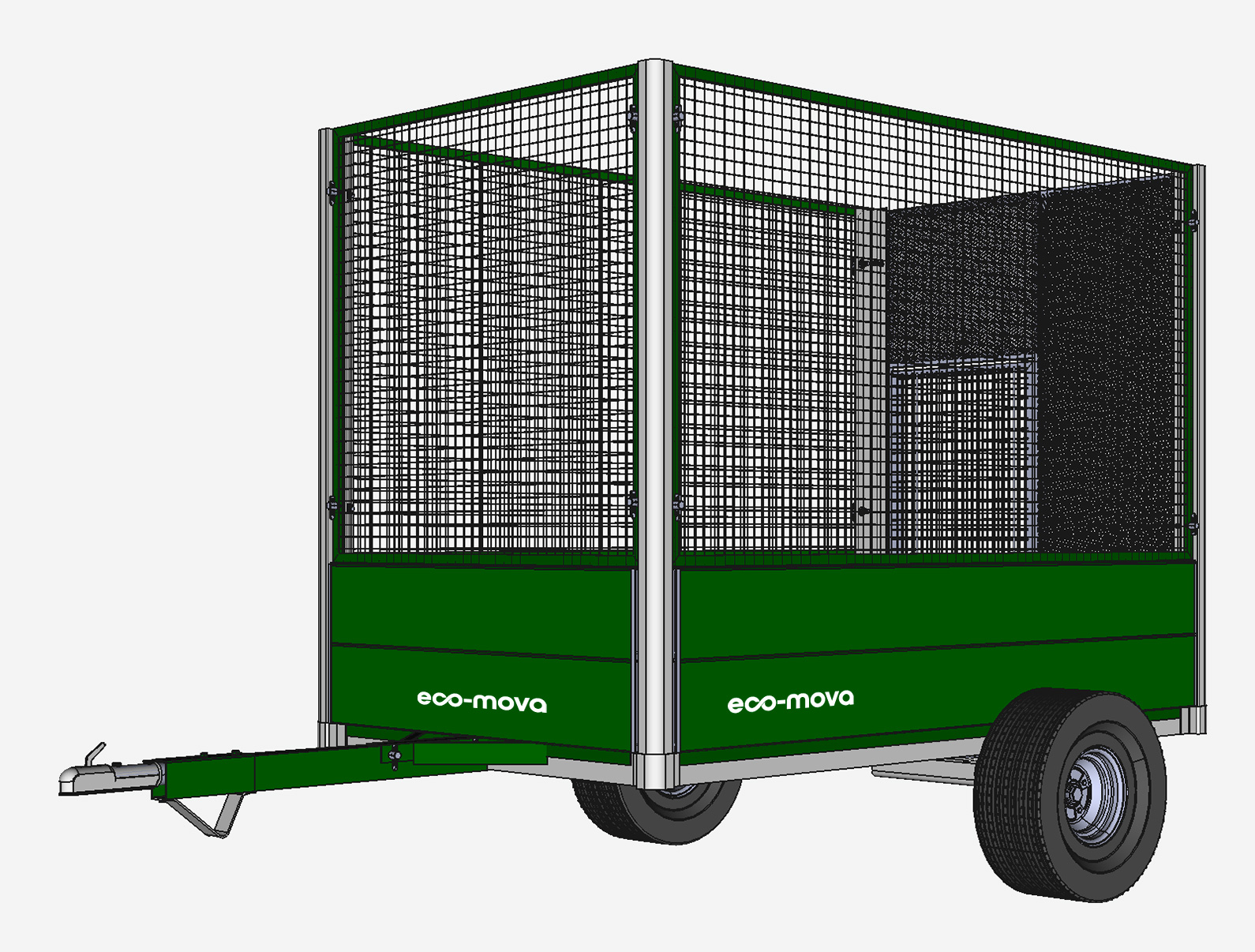

Eco-Mova’s LifeLong Off-Road Series are versatile, robust, high-clearance single-axle alloy trailers designed for professional, everyday use off-road. They can carry much larger loads than previous-generation steel trailers that rust, reducing fuel consumption, extending range, and lowering costs and emissions. They can also quickly convert for on-road use.
These trailers can carry livestock, equipment, 3 round bales, a 600kg pallet, or a 600kg tank on the road. Larger road models can carry heavier loads, including 1000kg IBC tanks. They easily convert for on-road use with an On-Road Legal Adaptor, which includes mudguards, LED lights, and a road-compliant fixed coupling.
They feature user-configurable panels and are ideal for transporting equipment, feed, or livestock behind quad bikes and cars
Lower costs, increased load capacity, rust free
and built to last a lifetime
Specification
| One series | Off-road Multipurpose | Off-road Sheep trailer |
|---|---|---|
| Load Capacity | Off-Road: Up to 1200kg. On-Road: Up to 650kg | Off-Road: Up to 1200kg. On-Road: Up to 750kg |
| Trailer Weight | 80kg to 200kg (standard and custom dimensions available) | 80kg to 200kg (standard and custom dimensions available) |
| Gross Vehicle Weight | (including load) Off Road: 1200kg On Road: 750kg on road | (including load) Off Road: Up to 1200kg. On Road: Up to 750kg |
| Overall Length | Add 100mm each side and draw bar from 1m to 2.5m, detachable | |
| Overall Width | 3ft to 7ft (1.0 to 2.4m) | 3ft to 8ft (0.9 to 2.45m) |
| Internal Bed Length - Selectable at order | 4ft to 9ft, (1.2 to 2.7m): | 4ft to 9ft (1.2m to 2.5m) |
| Internal Bed Width - Selectable at order | 3ft to 7ft (1.0 to 2.4m) | 3ft to 8ft ( 0.9 to 2.45m) |
| Floor Panel | Super Strong Alloy; corrosion- free bed with robust tie-downs | Unique, strong, lightweight alloy planks with tie-downs; never rots! |
| Axles & Suspension | Underside Unique Alloy Axles; Compact Alloy Torsion suspension, Stainless axles | Unique alloy axles, Torsion suspension, stainless stub-axles |
| Hubs | Cast Steel, oil-filled and sealed – low maintenance, no greasing! | Cast Steel with oil-immersed Bearings – no greasing! |
| Wheels & Tyres | Robust 10" alloy rims with wide road tyres, lightweight, corrosion-free, tested for grip on bogs, low wear on motorways | Alloy 10” rims, wide tyres: grip for fields, low wear on fast roads |
| Drawbar & Coupling | Removable & configurable; rotating for off-road, fixed for on-road | Detachable for security; rotating for off-road, fixed for on-road use |
| Comes With | Removable mesh ramps, side panels, removable draw bar | Spare wheel, sheep ramps and separators, ladder racks, ramps, jockey wheels, props, mesh separators, sheep ramp, covers, chocks. Portable Adaptor Kit (clip-on mudguards, LED lights, coupling) |
| Optional Extras | Spare wheel, ladder rack, quick-fit On Road Adaptor Kit, dual axle, added rear couplings, removable jockey wheels and prop stands, livestock separators, sheep doors, chocks for quads, bikes, covers… If you know the sizes and special features you need, we can make it. | |
| Prices from | €1200 - €2600 + VAT | €1200 - €2600 + VAT |
To Order
Call Rory on 098 377 42 and place a €100 pre-order deposit. Leadtimes are 8 week and your trailer will be delivered to you anywhere in Ireland.
